Enerline floor insulation
Warm floor and acoustic insulation in a single package
The Enerline® underfloor heating system combines a warm floor with the attenuation of footsteps. The insulation also functions as a thermal break between the bottom structures and the surface material. The floor is easy to install owing to the advanced solution. The height of the structure depends on the insulation and surface material used.
Documents
Brochures
Product info

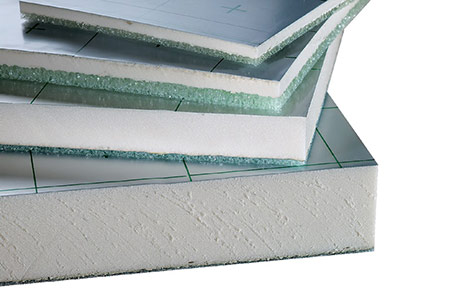

Pur-Therm insulation panels
Pur-Therm panels are made of polyurethane, a material with excellent insulation properties. The load-bearing capacity and heat insulation of the panels are unrivalled. Foil coating improves wear resistance.
The structure height when using the insulation boards is only 60mm and the material attenuates footsteps considerably. If necessary, additional thermal or acoustic insulation can be installed under the panels.
| PUR/PE 14mm | PUR/PE 23mm | |
| Thermal conductivity | 0,0257 W/mK | 0,0289 W/mK |
| Compression strength | 5 kN/m2 | 5 kN/m2 |
| Sound suppression | 20 dB(A) | 28 dB(A) |
| Package size | 100×200 cm/panel | 100×200 cm/panel |

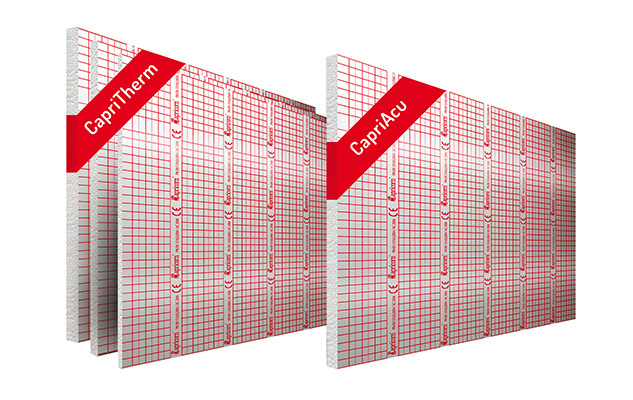

CAPRICORN INSULATION SHEETS AND ROLLS
CapriTherm panels are made of polyurethane, a material with excellent insulation properties. Foil coating improves wear resistance. The structure height when using the insulation boards is only 60mm and the material attenuates footsteps considerably. The Capri Aluplate system consists of an aluminium heat emission plate grooved for two 16mm heating pipes and a 100mm EPS insulation sheet. Use of the Capri Aluplate system speeds up installation works. Capri Aluplate system size is 100x40x20cm and insulation material EPS 100.
| CapriAcu/30 | CapriTherm Standard/25 | CapriTherm Strong/30 | |
| Thermal conductivity | 0,038 W/mK | 0,036 W/mK | 0,045 W/mK |
| Compression strength | 4,0 kN/m² | ||
| Sound suppression | 32 dB(A) | ||
| Package size (plate) | 100×200 cm | 100×200 cm | 100×200 cm |
| Package size (roll) | 500×100 cm | 500×100 cm | 500×100 cm |
Turbo-Cube roll insulation panels
Turbo-Cube insulation panels constitute an insulation solution developed for use with underfloor heating. The insulation material is characterised by good footstep noise attenuation and easy and quick installation. The material also functions as a thermal break, for example, between hollow-core slab and surface slab.
Owing to the strong surface structure of the insulation, the pipes are firmly attached to the insulation by means of specially developed U-fasteners.
| EPS-DES 20mm | EPS-DES 25mm | EPS-DES 30mm | |
| Thermal conductivity | 0,045 W/mK | 0,045 W/mK | 0,045 W/mK |
| Compression strength | 4 kN/m2 | 4 kN/m2 | 4 kN/m2 |
| Sound suppression | 28 dB(A) | 30 dB(A) | 34 dB(A) |
| Package size | 1200×100 cm/roll | 1200×100 cm/roll | 1200×100 cm/roll |
Optimal II insulation system
The OPTIMAL II system consists of Systemplatte panels made of expanded polystyrene and pre-grooved at the factory and aluminium or galvanized heat emission plates installed on top of them. If necessary, additional thermal or acoustic insulation can be installed under the Systemplatte panel. The heat emission plates of the OPTIMAL II system are grooved for 16 x 2.0mm heating pipes and the installation spacing can be either 125mm or 250mm.
After underfloor heating installation, the heat emission plates and heating pipes are protected with protective film. The structure may include pumpable filler or plasterboard, for example, on top of which the desired flooring material can be installed. With Optimal insulation panels, it is thus possible to implement a floor with water-based underfloor heating easily and inexpensively, completely without casting.
Mallit
2120102000 Insulation board Turbo-Cube EPS-DES 20 mm, WLS 045 – 12 m x 1 m roll
2120102500 Insulation board Turbo-Cube EPS-DES 25 mm, WLS 045 – 12 m x 1 m roll
2120103000 Insulation board Turbo-Cube EPS-DES 30 mm, WLS 045 – 12 m x 1 m roll
2120103500 Insulation board Turbo-Cube EPS-DES 35 mm, WLS 045 – 12 m x 1 m roll
2120105066 Tape Turbo-Cube PVC, 50 mm x 66 m, inner diameter of the roll: 75 mm
2120203001 Insulation board Optimal II castellated 30 mm Systemplatte, 1000 x 600 = 0,6 m2, R=0,857 m2K/W
2120081550 Edge tape 8 x 150 mm (50 m roll)
2120081551 Edge tape 8 x 150 mm iself-adhesive (50 m roll)
2120400000 Button plate Topp-Nopp 14-17mm for pipe without insulation
2120400001 Button plate Topp-Nopp connecting piece to the plate 080020
