Flow manifolds with flow meters

The high-quality manifold controls heating precisely. In terms of flow technology, the manifold is state-of-the-art, meaning that low and high flow rates can be adjusted precisely correct.

Documents

Add to offer request Remove from offer request

Product info

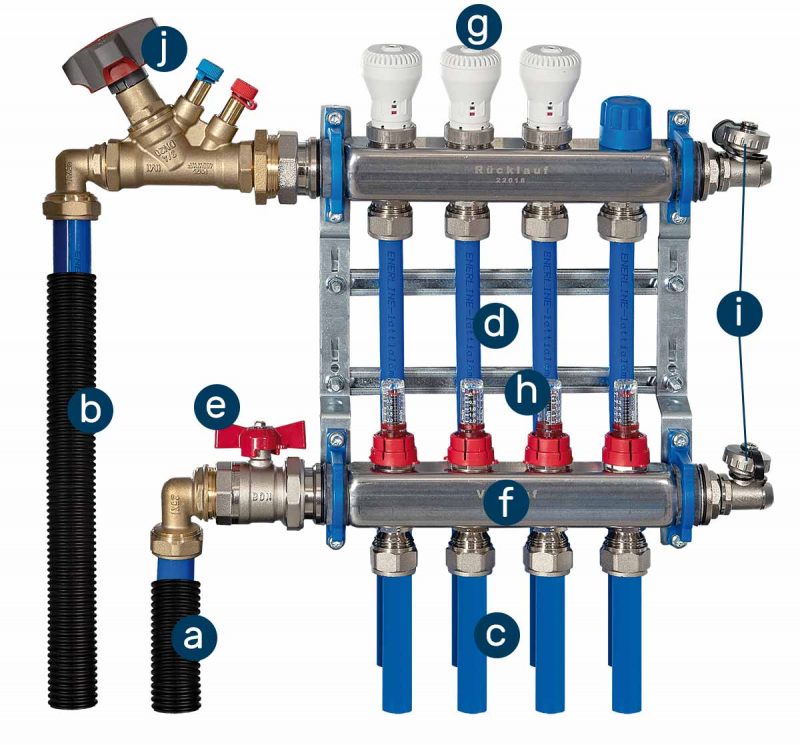

Manifold components

a. Feed pipe, supply
b. Feed pipe, return
c. Heating pipes, supply
d. Heating pipes, return
e.Shut-off valve

f. Enerline manifold, stainless steel
g. Actuators
h. Flow meters
i. Bleeding ends
j. Line control valve

Models and measurements

2103020010 Enerline manifold, 2-circuit. 1” (stainless)
2103030010 Enerline manifold, 3-circuit. 1” (stainless)
2103040010 Enerline manifold, 4-circuit. 1” (stainless)
2103050010 Enerline manifold, 5-circuit. 1” (stainless)
2103060010 Enerline manifold, 6-circuit. 1” (stainless)
2103070010 Enerline manifold, 7-circuit. 1” (stainless)
2103080010 Enerline manifold, 8-circuit. 1” (stainless)
2103090010 Enerline manifold, 9-circuit. 1” (stainless)
2103100010 Enerline manifold, 10-circuit. 1” (stainless)
2103110010 Enerline manifold, 11-circuit. 1” (stainless)
2103120010 Enerline manifold, 12-circuit. 1” (stainless)
